3D dynamic led wall
Panel pixels: P1.875/P2/P2.5/P4/P5
Cabinet size: Customize
Brightness: 800-1000cd/m2
Refresh rate: ≥1920HZ
Protection class: IP30
Product Introduction

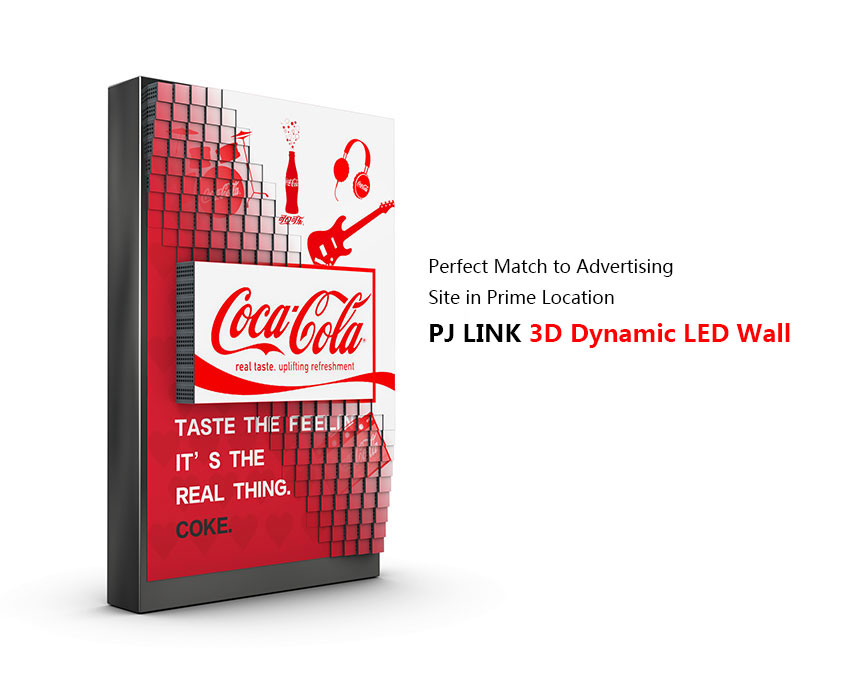

3D dynamic led wall.jpg


What does the led wave Screen bring to the advertising industry?

It can be used as a whole big screen,Full-screen ads are switched through different wave forms and have great visual effects.

Use the wave bulging effect of the screen to focus people's attention and point to the core content of the screen.

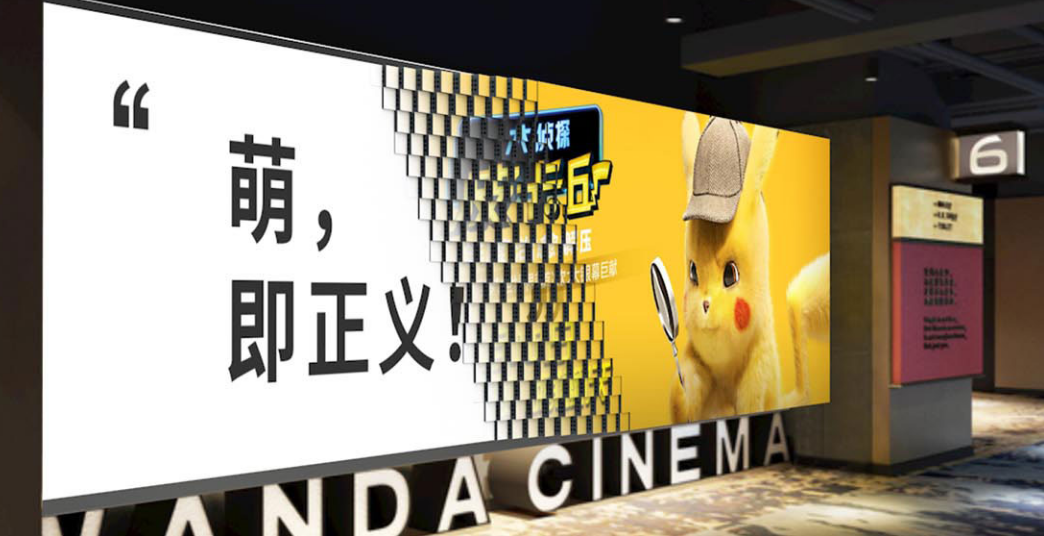

indoor 3D dynamic led wall.png


Technical parameters of 3D dynamic led wall

Model
p1.875p2p2.5p4p5
Pixel pitch(mm)        1.875mm
2mm2.5mm4mm5mm
LED TypeSMD1515SMD1515SMD2020SMD1921SMD2727
Application Environmentindoorindoorindooroutdooroutdoor
Pixel density(pixel/㎡)2844442500001600006250040000
LED panel size    240mm*240mm320mm*160mm320mm*160mm320mm*160mm320mm*160mm
LED panel density128*128160*80128*6480*4064*32
Scan    1/321/201/321/101/8
Refresh rate(HZ)≥1920≥1920≥1920≥1920≥1920
Cabinet sizecustomizecustomizecustomizecustomizecustomize
Brightness800cd-1000cd800cd-1000cd800cd-1000cd3500cd-4500cd3500cd-4500cd
Average power(w/㎡)≤240≤220≤230≤260≤260
Maximum power(w/㎡)≤660≤650≤640≤750≤750
Maintenance methodFrontFrontFrontFrontFront
Input voltage    AC100V-240VAC100V-240VAC100V-240VAC100V-240VAC100V-240V
Service life100,000 hours100,000 hours100,000 hours100,000 hours100,000 hours

outdoor 3D dynamic led wall.jpg
