Immersive LED time tunnel screen interactive system
Panel pixels: P1.875/P2/P2.5/P4/P5
Cabinet size: Customize
Brightness: 800-1000cd/m2
Refresh rate: ≥1920HZ
Protection class: IP30
Product Introduction

LED video tunnel experience.gif


The immersive LED space-time tunnel screen is a visual display of spacetime interactive LEDs, allowing us to create a variety of immersive

visual experiences, similar to the rich picture experience of the "underwater world", which is interpreted in the way of space-time tunnels;

there are four Changes in seasons, spring flowers, birds, summer trees, yellow leaves in autumn, silver cover in winter and other visual

effects;Considering that the sight distance of visitors is relatively close, we use high-density LED modules to make the overall effect

dynamic and static. Eliminate any monotony of media playback.

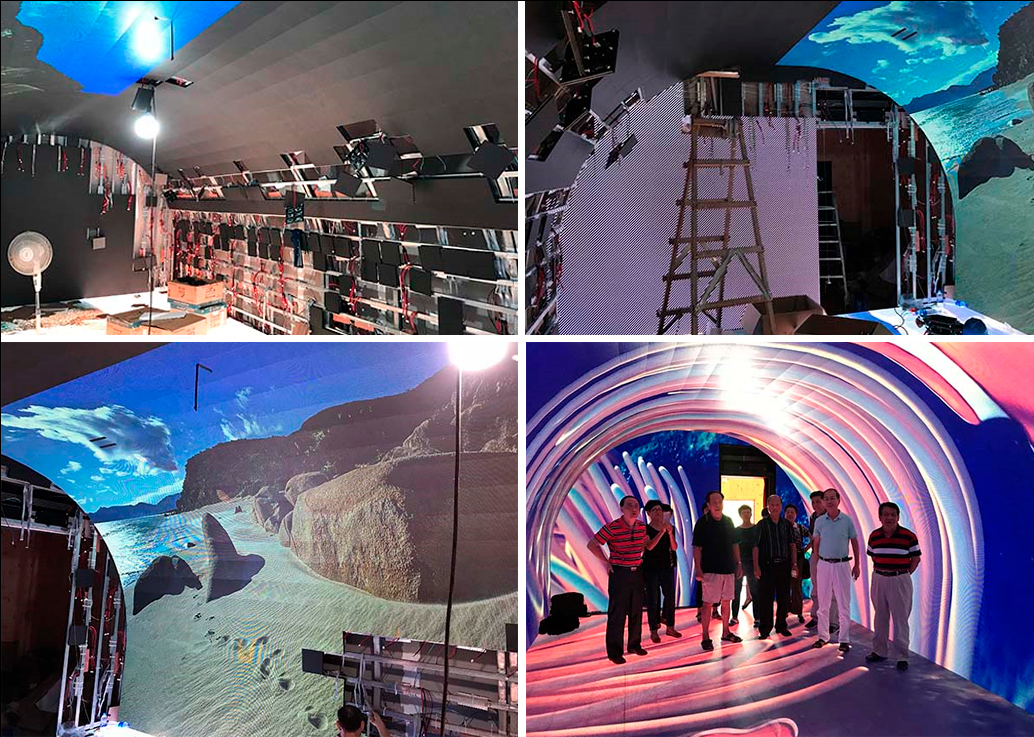

How to install immersive LED space-time tunnel screen:

LED space-time tunnel screen installation.jpg


Technical parameters of Immersive LED space-time tunnel screen:

Model
p1.875p2p2.5p4p5
Pixel pitch(mm)        1.875mm
2mm2.5mm4mm5mm
LED TypeSMD1515SMD1515SMD2020SMD1921SMD2727
Application Environmentindoorindoorindooroutdooroutdoor
Pixel density(pixel/㎡)2844442500001600006250040000
LED panel size    240mm*240mm320mm*160mm320mm*160mm320mm*160mm320mm*160mm
LED panel density128*128160*80128*6480*4064*32
Scan    1/321/201/321/101/8
Refresh rate(HZ)≥1920≥1920≥1920≥1920≥1920
Cabinet sizecustomizecustomizecustomizecustomizecustomize
Brightness800cd-1000cd800cd-1000cd800cd-1000cd3500cd-4500cd3500cd-4500cd
Average power(w/㎡)≤240≤220≤230≤260≤260
Maximum power(w/㎡)≤660≤650≤640≤750≤750
Maintenance methodFrontFrontFrontFrontFront
Input voltage    AC100V-240VAC100V-240VAC100V-240VAC100V-240VAC100V-240V
Service life100,000 hours100,000 hours100,000 hours100,000 hours100,000 hours


Space Time Tunnel LED Screen.jpgLED interactive screen.jpg


Immersive LED space-time tunnel screen case sharing:
