interactive LED floor tile screen
Panel pixels: P6.25/P4.81/P3.91/P2.97
Module size: 250mm*250mm
Cabinet size: 1000*500*80mm/1000*1000*80mm
Brightness: 800-1000cd/m2
Refresh rate: ≥1920HZ
Protection class: IP30
Product Introduction



The interactive floor tile screen is based on the LED floor tile screen and adds the induction interaction function.

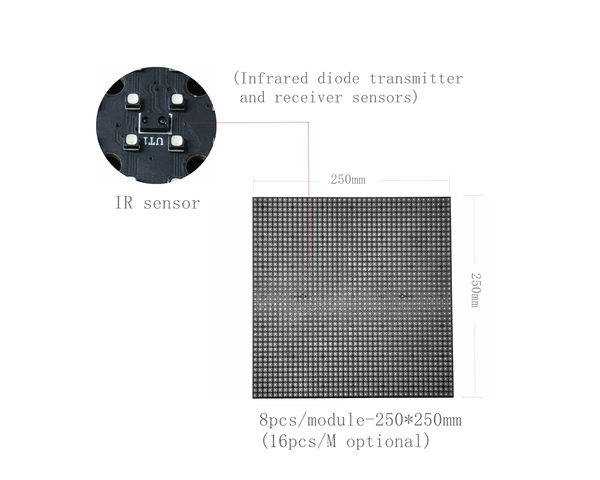

The LED floor tile display is loaded with devices such as pressure sensors or capacitive sensors or infrared sensors.


When a person moves on the floor tile screen, the sensor can sense the position of the person and feedback the trigger information


to the main controller, and then the main controller logic After the judgment, the corresponding display effect is output.For example,


with the help of infrared sensing, you can track the movement of people, and follow the movements of the human body to present


real-time picture effects, which can achieve effects such as actors and viewers walking by, water ripples at the feet, and flowers opening.

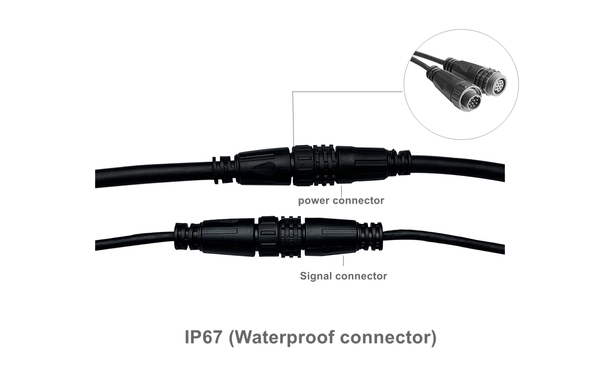

LED interactive floor tile screen.jpgPower line and signal line connectors.jpg


Cxcolor LED interactive floor tile screen has the following characteristics:

1. Good load bearing performance

2. High sensitivity

3. Flexible and convenient installation and removal

4. Safe circuit design


LED floor tile screen.jpg

Technical parameters of interactive LED floor tile screen:

Model
p2.6p2.97p3.91p4.81p6.25
Pixel pitch(mm)        2.6mm
2.97mm3.91mm4.81mm6.25mm
LED TypeSMD1515SMD2020SMD2020SMD1921SMD3535
Application Environmentindoorindoorindooroutdooroutdoor
Pixel density(pixel/㎡)147928113367654104322225600
LED panel size    250mm*250mm250mm*250mm250mm*250mm250mm*250mm250mm*250mm
LED panel density96*9684*8464*6452*5240*40
Scan    1/241/211/161/131/10
Refresh rate(HZ)≥1920≥1920≥1920≥1920≥1920
Cabinet size500mm*1000mm500mm*1000mm500mm*1000mm500mm*1000mm500mm*1000mm
Brightness800cd-1000cd800cd-1000cd800cd-1000cd3500cd-4500cd3500cd-4500cd
Average power(w/㎡)≤240≤220≤230≤260≤260
Maximum power(w/㎡)≤660≤650≤640≤750≤750
Maintenance methodFrontFrontFrontFrontFront
Input voltage    AC100V-240VAC100V-240VAC100V-240VAC100V-240VAC100V-240V
Service life100,000 hours100,000 hours100,000 hours100,000 hours100,000 hours

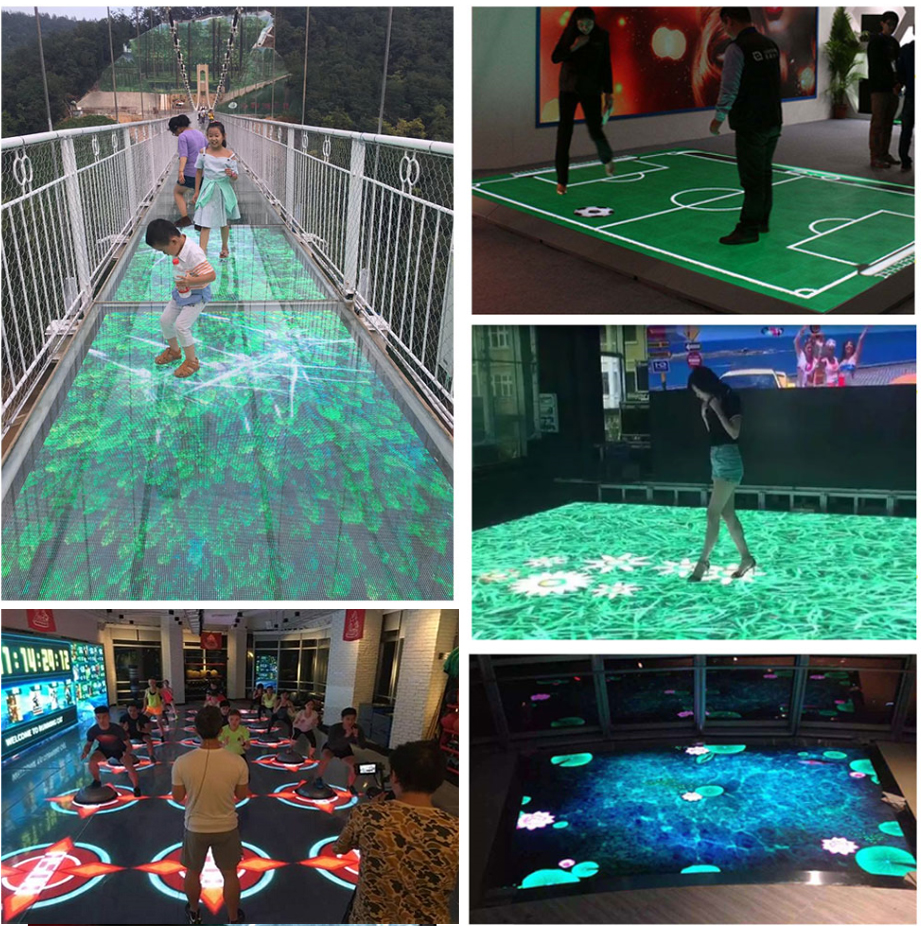

Interactive LED floor tile screen application

Innovative Indoor and Outdoor Floor Led Screens.jpg
