fine pixel led display
Panel pixels: p1.29/p1.579/p1.875/p2.5
Module size: 240mm*240mm
Cabinet size: 960mm*480mm/480mm*480mm
Brightness: 600-800cd/m2
Refresh rate: ≥3840HZ
Protection class: IP30
Product Introduction

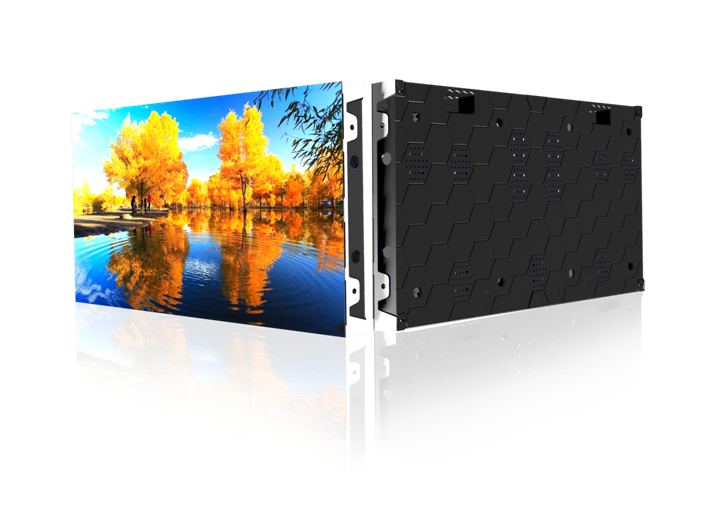

led display indoor small pitch.jpg

1 The product adopts the integrated design of die-cast aluminum finishing, and the display ratio is 2: 1.

2 Highly integrated internal design, complete front maintenance, all parts adopt custom hard connection to achieve wireless connection.

3 Support hot plug, large load, low power consumption, easy disassembly. Diversion type multi-point cooling holes, safe, stable and reliable.

4 The whole machine has a large size, which saves time, effort and materials, and has a high price.

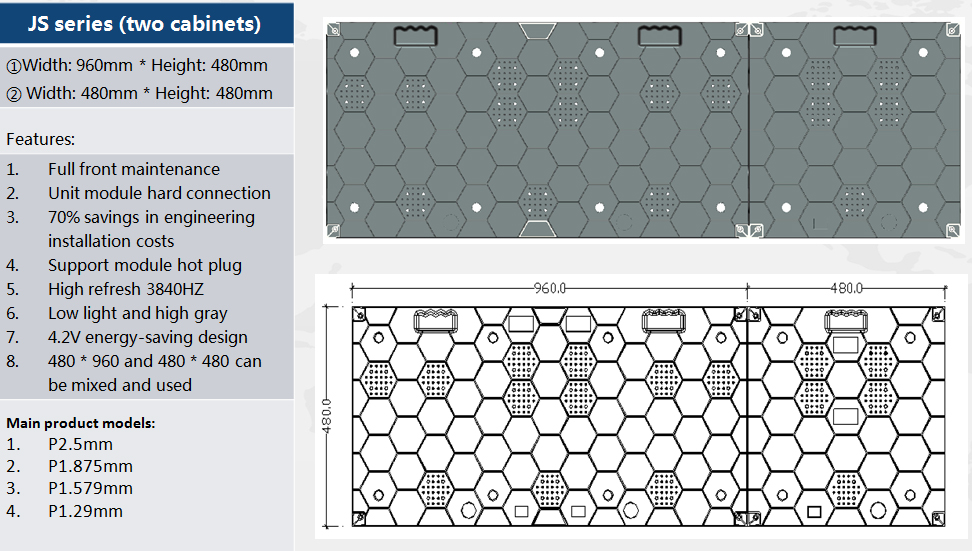

high resolution LED display.jpg


led small pitch display.jpg


Technical parameters of small pitch led display

Model
p1.29p1.579p1.875P2.5
Pixel pitch(mm)       1.29mm
1.579mm1.875mm2.5mm
LED TypeSMD1010SMD1212SMD1515SMD2020
Application Environmentindoorindoorindoorindoor
Pixel density(pixel/㎡)600625401084284444160000
LED panel size   240mm*240mm240mm*240mm240mm*240mm240mm*240mm
Refresh rate(HZ)≥3840≥3840≥3840≥3840

Cabinet size

960mm*480mm

480mm*480mm

960mm*480mm

480mm*480mm

960mm*480mm

480mm*480mm

960mm*480mm

480mm*480mm

Brightness600cd-800cd600cd-800cd600cd-800cd800cd-1000cd
Average power(w/㎡)≤210≤210≤210≤230
Maximum power(w/㎡)≤660≤650≤640≤650
Maintenance methodFrontFrontFrontFront
Waterproof levelIP32IP32IP32IP32
Input voltage   AC100V-240VAC100V-240VAC100V-240VAC100V-240V
Service life100,000 hours100,000 hours100,000 hoursAC100V-240V
