indoor led display
Panel pixels: P2/P2.5/P3/P4/P5
Module size: 320mm*160mm
Cabinet size: 640mm×640mm×80mm
Brightness: 800-1000cd/m2
Refresh rate: ≥1920HZ
Protection class: IP30
Product Introduction

indoor led display.jpg

led indoor display.jpg

led display indoor.jpg


Cxcolor indoor led display product features:

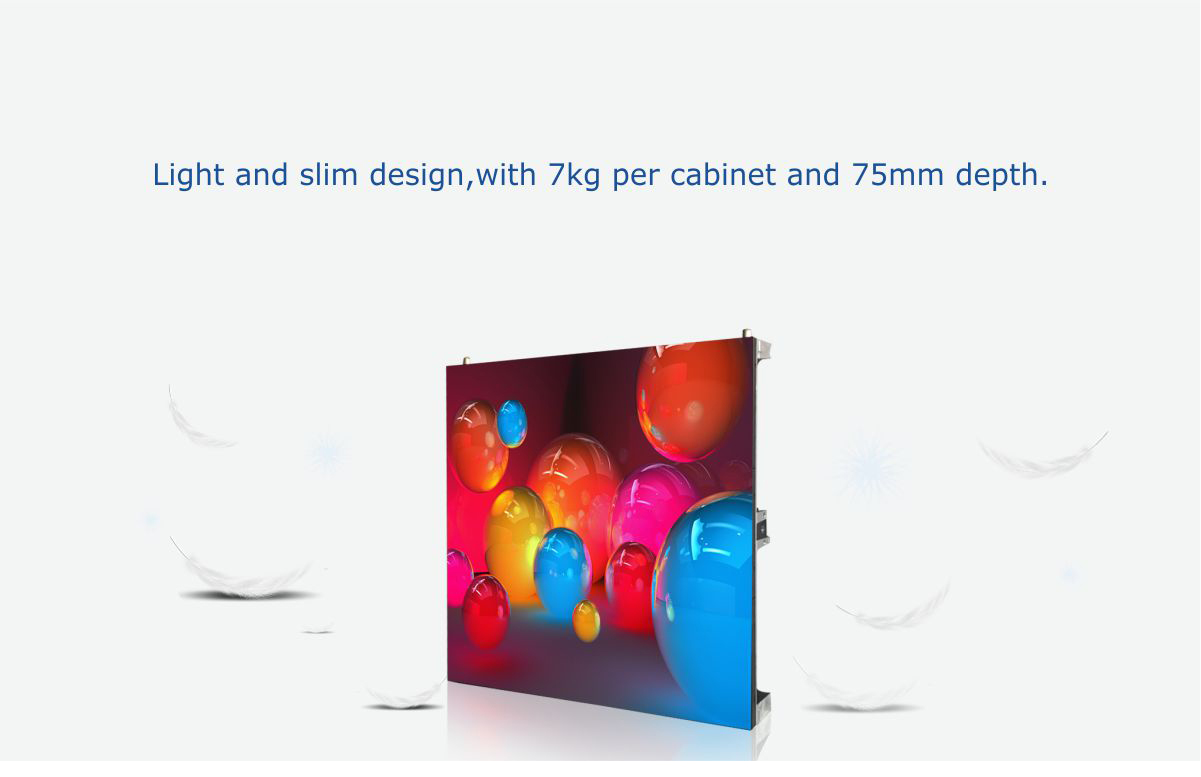

1. Ultra-light-only 8kg in weight, it can be carried by a single person, it is very easy to install;

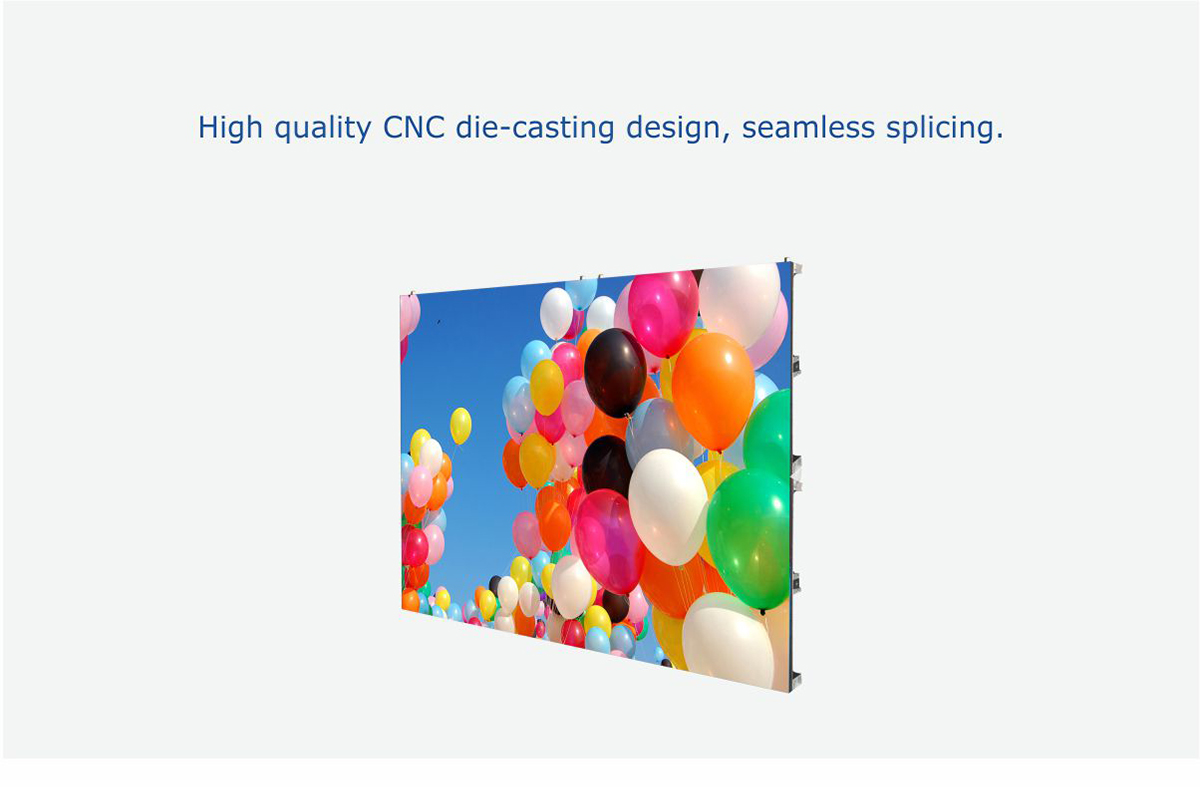

2. Ultra-thin-the box body is formed by die-casting aluminum, which has high strength, toughness, high precision, and is not easy to deform, saving labor for transportation;


3. High precision-the size is electromechanical processing accurate to 0.1mm;


4. Compatible-new structural design, meet the requirements of lifting and stacking, and meet the requirements of indoor and outdoor;


5. Fastthe box is connected up, down, left and right with a fast locking mechanism, which can complete the installation of a box in 10 seconds, with high installation accuracy;


6. Reliable-high strength and hardness, good heat dissipation effect;

indoor led wall display.jpg


Technical parameters of indoor led display

Model
P2p2.5p3p4P5
Pixel pitch(mm)       2mm
2.5mm3mm4mm5mm
LED TypeSMD1515SMD2020SMD2020SMD2020SMD2020
Application Environmentindoorindoorindoorindoorindoor
Pixel density(pixel/㎡)250000    1600001111116250040000
LED panel size   320mm*160mm320mm*160mm320mm*160mm320mm*160mm320mm*160mm
Refresh rate(HZ)≥1920≥1920≥1920≥1920≥1920
Cabinet size640mm*640mm640mm*640mm640mm*640mm640mm*640mm640mm*640mm
Brightness800cd-1200cd800cd-1200cd800cd-1200cd800cd-1200cd800cd-1200cd
Average power(w/㎡)≤210≤210≤210≤210≤230
Maximum power(w/㎡)≤660≤650≤640≤650≤650

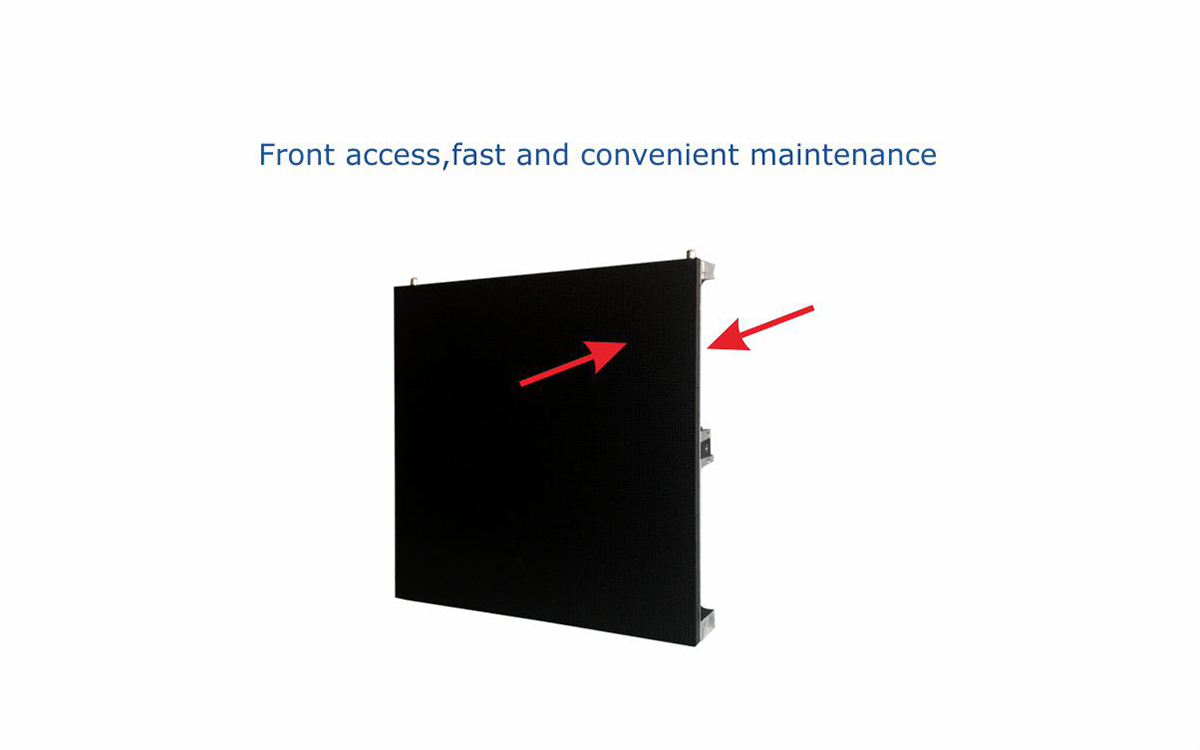

Maintenance methodFront or behindFront or behindFront or behindFront or behindFront or behind
Waterproof levelIP32IP32IP32IP32IP32
Input voltage   AC100V-240VAC100V-240VAC100V-240VAC100V-240VAC100V-240V
Service life100,000 hours100,000 hours100,000 hours100,000 hoursAC100V-240V
