rental led display
Panel pixels: P1.95/P2.5/P2.6/P2.97/P3.91/P4.81
Module size: 250mm*250mm
Cabinet size: 500*500/500*1000
Brightness: 800-1200cd/m2
Refresh rate: ≥3840HZ
Protection class: IP30
Product Introduction



                        R Series LED Display


rental led display.png

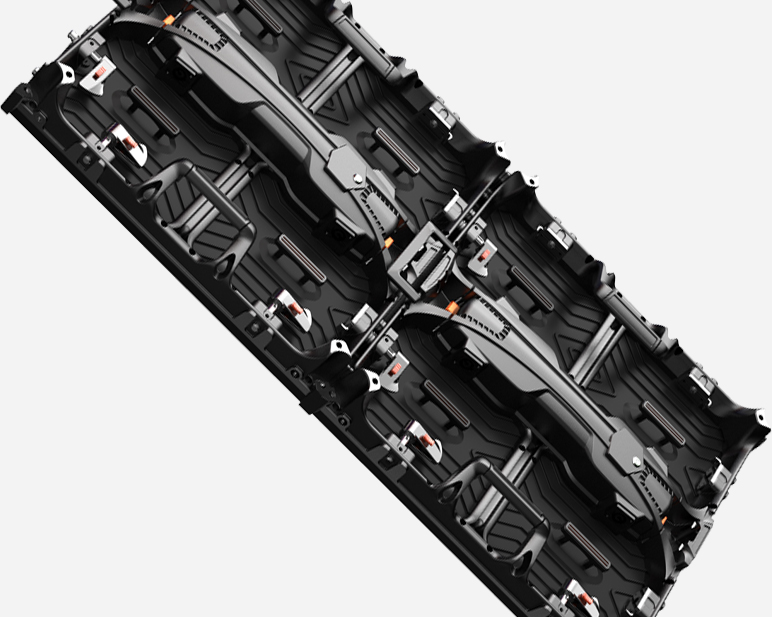

Paper-slim and lightweight design


CNC Aluminum diecasting cabinet,

7kg lightweight and 87mm ofthickness.

indoor rental led display.png

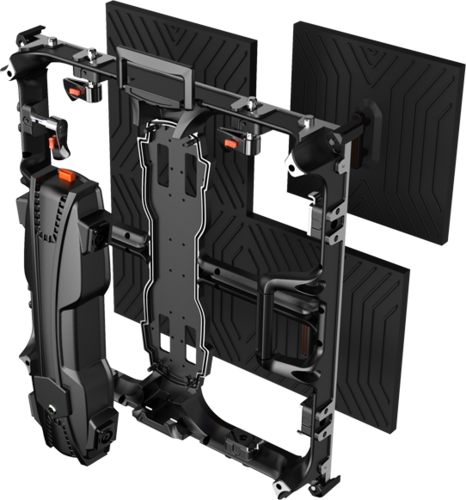

Neat cabling system

Cable free modules connect to power box by connection pins to enable neat cabling system,user friendly universal

module for quickly remove and replace.


led display rental.pngled rental display.png

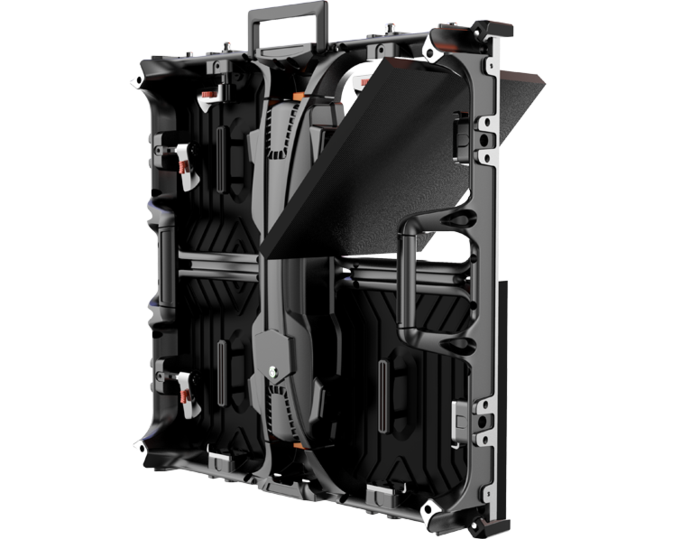

Front & Rear access maintenance


Magnets module can be easily removed by a suction cup tool;
Cabinet is front or rear accessible.


wedding concert rental led display stage.jpg


Multi-functional Application


Curved system, curvature 10 degrees concave or convex Multi-

functional design for staging, flooring and other permanent led
signage.



p3.91 rental led display.png



Hanging & Stacking &

Permanent installation Options

Indoor or Outdoor Rental (Hanging & Stacking) & Permanent

installation application; Waterproof rate Ip54, Brightness 5000cd/㎡.


rental led display screen.jpg


Technical parameters of rental led display

Model
P1.95P2.5P2.6P2.97P3.91P4.81

Pixel pitch(mm)

1.95mm
2.55mm2.6mm2.97mm3.91mm4.81mm
LED TypeSMD1515SMD1515SMD1515SMD2020SMD2020SMD2020
Application Environmentindoorindoorindoorindoorindoor /outdoorindoor/outdor
Pixel density(pixel/㎡)2629841600001479281133676541043222
LED panel size   250mm*250mm250mm*250mm250mm*250mm250mm*250mm250mm*250mm250mm*250mm
Refresh rate(HZ)≥3840≥3840≥3840≥3840≥3840≥3840
Cabinet size

500mm*500mm

500mm*1000mm

500mm*500mm

500mm*1000mm

500mm*500mm

500mm*1000mm

500mm*500mm

500mm*1000mm

500mm*500mm

500mm*1000mm

500mm*500mm

500mm*1000mm

Brightness800cd-1200cd800cd-1200cd800cd-1200cd800cd-1200cd

800cd-1200cd

3500cd-4500cd

800cd-1200cd

3500cd-4500cd

Average power(w/㎡)≤210≤210≤210≤210≤210≤230
Maximum power(w/㎡)≤660≤650≤640≤650≤650≤650
Maintenance methodFront or behindFront or behindFront or behindFront or behindbehindbehind
Waterproof levelIP32IP32IP32

IP32

IP32/IP65IP32/IP65
Input voltage   AC100V-240VAC100V-240VAC100V-240VAC100V-240VAC100V-240VAC100V-240V

Service life

100,000 hours100,000 hours100,000 hours100,000 hours100,000 hoursAC100V-240V
