small pixel pitch led screen
Panel pixels: P0.975/P1.25/P1.56/P1.875/P2.5
Module size: 150mm*168.75
Cabinet size: 600mm*337.5mm
Brightness: 800-1000cd/m2
Refresh rate: ≥3840HZ
Protection class: IP30
Product Introduction

small pixel pitch led screen.jpg


Cxcolor LED small pitch product features:


1. Wide viewing angle, high contrast, high brightness (adjustable), high grayscale, high refresh, soft image, realistic display image;


2. No noise, low power consumption, low EMI, high life;


3, 16bit broadcast-level grayscale processing, 3840HZ refresh rate;


4. Point-by-point brightness and chrominance correction, keeping the details and color reproducibility of low-gray images;

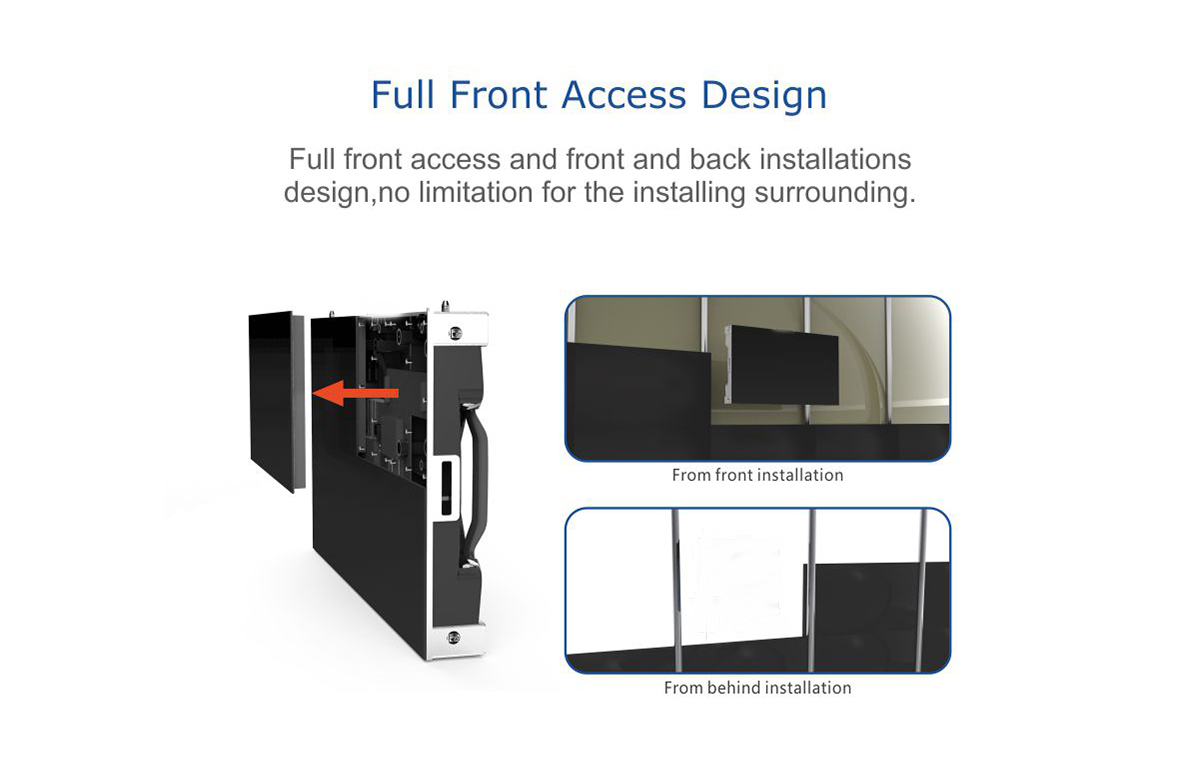

5. The module is fixed with strong magnetic suction, which can be maintained without tools;


6. Die-cast aluminum structure box, realizes high-precision flat and seamless splicing and good heat dissipation;


7, fanless design, keep silent;


small pixel pitch led display.jpg


fine pixel led display.jpg


Technical parameters of small pitch led display

Model
p0.9375p1.25p1.56p1.875P2.5
Pixel pitch(mm)       0.9mm
1.25mm1.56mm1.875mm2.5mm
LED TypeM09TSMD1010SMD1010SMD1515SMD1515
Application Environmentindoorindoorindoorindoorindoor
Pixel density(pixel/㎡)1137777640000410914284444160000
LED panel size   150mm*168.75mm150mm*168.75mm150mm*168.75mm150mm*168.75mm150mm*168.75mm
Refresh rate(HZ)≥1920≥1920≥1920≥1920≥1920
Cabinet size600mm*337.5mm600mm*337.5mm600mm*337.5mm600mm*337.5mm600mm*337.5mm
Brightness600cd-800cd600cd-800cd600cd-800cd800cd-1000cd800cd-1000cd
Average power(w/㎡)≤210≤210≤210≤210≤230
Maximum power(w/㎡)≤660≤650≤640≤650≤650
Maintenance methodFrontFrontFrontFrontFront
Waterproof levelIP32IP32IP32IP32IP32
Input voltage   AC100V-240VAC100V-240VAC100V-240VAC100V-240VAC100V-240V
Service life100,000 hours100,000 hours100,000 hours100,000 hoursAC100V-240V
